Child-protector rear door lock
Features of your vehicle / Door locks / Child-protector rear door lock

Hyundai Elantra: Child-protector rear door lock. The child safety lock is provided to help prevent children from accidentally

The child safety lock is provided to help prevent children from accidentally opening the rear doors from inside the vehicle. The rear door safety locks should be used whenever children are in the vehicle.

1. Open the rear door.

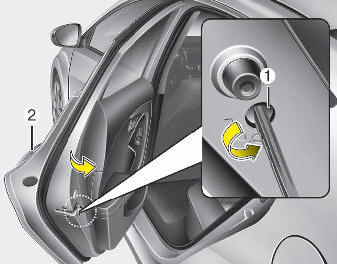

2. Insert a key (or screwdriver) into the hole (1) and turn it to the lock (Hyundai Elantra: Child-protector rear door lock. position. When the child safety lock is in the lock position, the rear door will) position. When the child safety lock is in the lock position, the rear door will not open even when the inner door handle is pulled.

3. Close the rear door.

To open the rear door, pull the outside door handle (2).

Even though the doors may be unlocked, the rear door will not open by pulling the inner door handle until the rear door child safety lock is unlocked.

Hyundai Elantra: Child-protector rear door lock. - Rear door locksWARNING - Rear door locks

If children accidentally open the rear doors while the vehicle is in motion, they could fall out of the vehicle, resulting in severe injury or death. To prevent children from opening the rear doors from the inside, the rear door safety locks should be used whenever children are in the vehicle.
